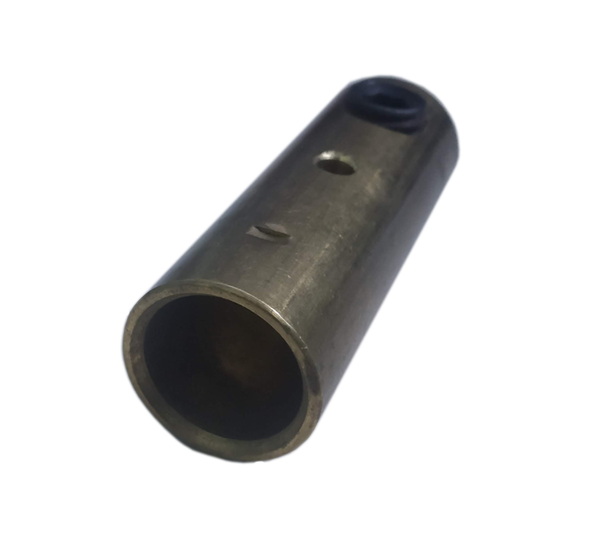

300A Connector Socket Brass Body (Female Camlock)
Product Code : PWHT-7030
300A Connector Socket Brass Body (Female Camlock)
These plugs and receptacles are specifically designed for industrial applications where electrical equipment is exposed to harsh environments.They are ideal for welding equipment, power distribution panels, patch panels and heat treating applications and are insulated for safety with reinforced thermoplasticor epoxy, or watertight elastomeric.
Electrical Ratings
• 120 Volts AC
• Up to 315 Amps Continuous, 550 Amps Intermittent
Temperature Ratings
• Standard: Up to 105°C
• High Temperature: Up to 180°C (365ºF)
Materials
• Accepts cable sizes: #8 AWG - 4/0
• Insulator material: Reinforced thermoplastic (E1010, E1012), reinforced epoxy (E1012 High-Temperature) or elastomeric (E1012 only)
• Contact material: Brass or silver-plated brass
Dimensions: 63 H x 22 W x 22 D mm
Weight: 100g
Materials: Brass
Colour: Brass
