CHINO EH 3000 Series Dot Printing Type Analog Recorder

CHINO EH 3000 Series Dot Printing Type Analog Recorder

Product Code : PWHT-7015

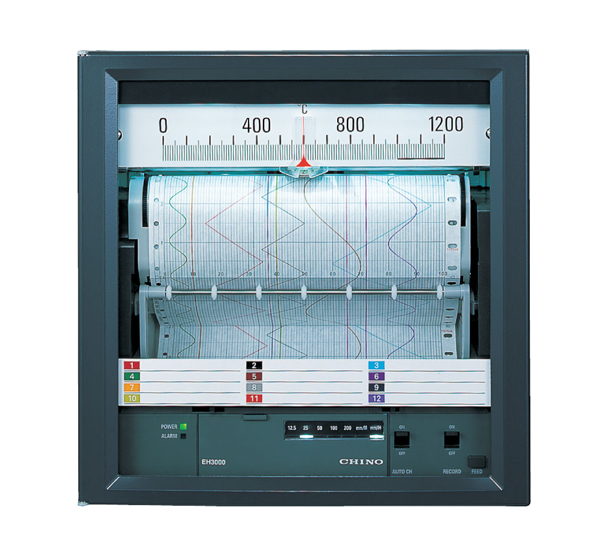

CHINO EH 3000 Series Dot Printing Type Analog Recorder

EH 3000 Series is a dot printing type analog recorder sized 288 X 288mm with 180mm Width chart. Recording points are 5 kinds, 1 point to 12 points and records clearly temperature, pressure, flow, level.

High Accuracy ±0.25%

By Large scale plate and sharp pointer location, it is easy to see the indication and high accuracy of ±0.25% (DC Voltage Input)

Universal Power Supply

Universal power supply with voltage range of 100 to 240 V AC (50/60Hz) is applied.

Linearized temperature scale prepared

Temperature scale of thermocouple and resistance thermometer input is a linear scale that is excellent in reading value.

6 Chart speeds

6 Chart speeds (12.5, 25, 50, 75, 100, 150mm/h) are swichable as standard. 5 chart speed and hour/minute change are prepared as option.

Easy operation and robust structure

Operation switch and setting switch are separate arranged for easy operation and robust structure that adopted steel casing and die-cast door.

Input Specifications

Input types:
DC voltage: ±13.8mV, ±27.6mV, ±69mV, ±200mV,±500mV, ±2V, ±5V
Built-in voltage divider (option): ±10V, ±20V, ±50V
DC current: External shunt resistor (250Ω) required (option)
Thermocouple: K, E, J, T, R (option B, S, N, U, L)
Resistance Thermometer: Pt100, JPt100 (option)
Linear scale for thermocouple and resistance thermometer.
Input designation: Single scale (standard), double / triple scale (option)
Accuracy ratings:
DC voltage input ±0.25% of input scan
Thermocouple and resistance thermometer ±0.5% of input span (except for some inputs)
Indicating dead band: ±0.2% of input span
Reference junction compensation accuracy:
K, E, J, T ±1.0„ƒ or below (23„ƒ±10„ƒ)
±2.0„ƒ or below (0„ƒ to 50„ƒ)
(For internal reference junction compensation, the errors above are added to the accuracy rating)
Temperature drift: ±0.02%FS / „ƒ (Converted into reference ranges)
Indicating resolution: Approximately 1/3,600
Allowable signal source resistance:
DC voltage inputs, thermocouple inputs 1kΩ or less (no burnout). Resistance thermometer inputs per wire 10Ω or less (same resistance for 3 wires)
Input resistance: DC voltage inputs (±5V or less), thermocouple inputs approximately 8MΩ
DC voltage inputs (voltage divider built-in) approximately 1MΩ
Maximum input voltage:
DC voltage inputs, thermocouple inputs, ±10V DC or less
DC voltage inputs (voltage divider built-in) ±60V DC or less
Resistance thermometer ±6V DC or less
Maximum common mode voltage: 30V AC
Common mode rejection ratio: 120dB or more
Normal mode rejection ratio: 50dB or more

Recording Specifications

Chart paper: Fan-fold type effective chart width 180mm (total width 200mm), total length of 20m
Recording points: 1,2, 3, 6, 12 points
Dotting interval: 6 seconds/point
Recording system: Inkpad dotting
1: red 2: blue 3: sky blue, 4: green, 5 brown, 6 purple, 7 orange, 8 gray, 9 blue, 10 greenish brown, 11 scarlet, 12 violet
Chart speed: 12.5,25,50,75,100,150mm/h
Chart speed accuracy: ±0.1% (based on chart paper scale)

General Specifications

Rated power voltage: 100 to 240V AC, 50/60Hz
Power voltage fluctuation: Indication fluctuation 0.2% or less (converted into reference ranges at 90 to 264V AC)
Power consumption: Maximum 20VA (100V AC), 25VA (240V AC)
Environmental conditions:
Reference operation condition
Ambient temperature range: 21 to 25„ƒ
Ambient humidity range: 45 to 65%RH
Power voltage: 100V AC ±1%
Power frequency: 50/60Hz ±0.5%
Attitude: left/right 0„ƒ, forward tilting 0„ƒ, backward tilting 0„ƒ
Warm-up time: longer than 30 minutes
Normal operation condition:
Ambient temperature range: 0 to 50„ƒ (20 to 65%)
Ambient humidity range: 20 to 80%RH (5 to 40„ƒ)
Power voltage: 90 to 264V AC
Power frequency: 50/60Hz ±2%
Attitude: left/right 0 to 10°, forward tilting 0°, backward tilting 0 to 30°
Case:
Door frame: Aluminum Die-Cast, Door window: Glass, Back case: Steel
Color: Door Frame Gray (equivalent to Mussel N3)
Back case: Gray (equivalent to Mussel N7) Door window: Transparent
Mounting: Panel mounting
Weight: Approximately 8.0kg
Terminal screws: Power terminals / Protective conductor terminals / Alarm terminals M4.0, measuring terminal M4.0
